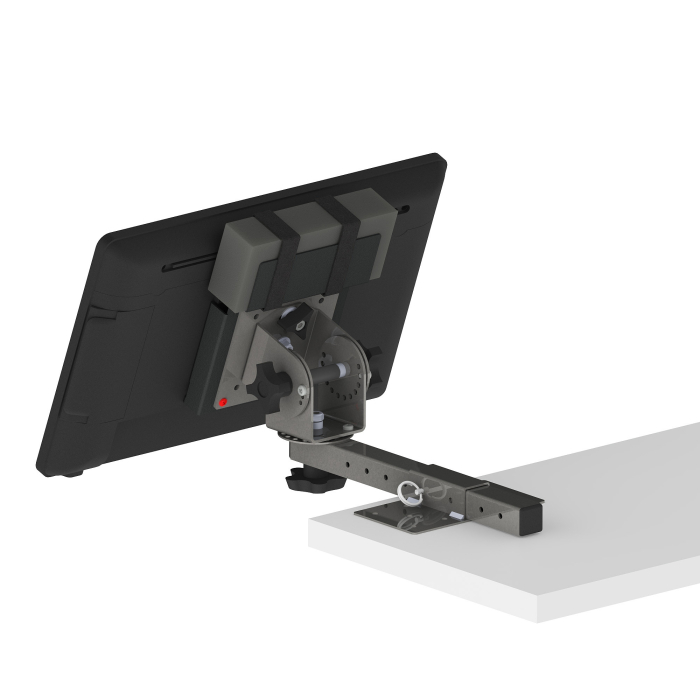

Adjustable Arm Shelf Edge Mount with a WS6 Pan & Tilt head and a PS holder

$255.00
In stock
Product Code
80117-MICROS
More Information
Product Code 80117-MICROS
Availability In Stock
Delivery Time 1-7 Days
Note Product usually ships within 24 hours of payment/order.

General Features

  • Both of these shelf edge mounts support all Oracle MICROS terminals with the MICROS Quick Connect tabs and slots mounting standard for Point of Sale / POS, Kitchen Display Systems / KDS in commercial kitchens, retail, restaurants, offices, industry, shops, medical, maritime, schools, laboratory and many other applications.
  • An innovative set of joint assemblies allow four axis of position adjustment when attached to a shelf or other horizontal surface.
  • Beyond having flexible articulation; this mount has the key feature of being easily LOCKED in any desired screen position; this ability is VERY important when using touch screen equipment as it PREVENTS the screen from moving away from the user each time a touch is input.
  • This assembly supports up to 15 lbs., is made from steel and finished with a durable, silver-gray, semi-gloss, powder coat that resists fingerprints and emulates stainless steel.
  • This mounting package includes the following individual product components PN 67096, PN 67097, PN 67081-CH, PN 80805.
  • Visit kitchendisplaysystems.com for a free, easy to understand tutorial that covers all aspects of Kitchen Display Systems knowledge!

Oracle MICROS compatible Enhanced Pan and Tilt Head with side-to-side Tilt adjustment on an Adjustable Arm

  • Tightening the 2 four-point knobs applies variable clutching resistance to allow adjustment of the up and down tilt position of the screen. Tighten either of the two 10-32 Phillips head screws adjacent to the four-point knobs to permanently secure the tilt position.
  • Tightening the five- point knob below the end of the Arm applies variable clutching resistance to allow adjustment of the side-to-side pan position of the screen. Tighten the 10-32 Phillips head screw on the lower Panning plate into one of the holes in the end of the arm to permanently secure the pan position.
  • Tightening the three - point knob at the rear center of the MICROS mounting plate applies variable resistance to allow adjustment of the side-to-side screen tilt position.

Fixed Shelf Edge Receiver Mounting Plate and Sliding Straight Arm

  • The Fixed Shelf Edge Receiver Mounting Plate can be attached to any flat, smooth horizontal or vertical surface.
  • Attach the mounting plate to the mounting surface with appropriate fasteners.
  • Remove the 3/16” push pin to adjust the extended position of the Sliding Straight Arm to the desired position in the Fixed Shelf Edge Receiver; then reinsert the pin.

We believe in ethical SEO relevancy; the following section was included to assist the all-knowing algorithms in locating this page; however, some humans like it too.

  • MICROS Shelf edge mount, MICROS Shelf edge mounting bracket, MICROS Shelf edge mount bracket, MICROS Terminal Shelf edge mount, MICROS Terminal Shelf edge mounting bracket, MICROS Terminal Shelf edge mount bracket.
  • MICROS Point of Sale terminal Shelf edge mount, MICROS KDS Shelf edge mount, MICROS KDS Shelf edge mounting bracket, MICROS KDS Shelf edge mount bracket, MICROS Kitchen Display System Shelf edge mount.

Below is a partial list of Oracle MICROS compatible Terminals that use the MICROS Quick Connect tabs and slots mounting standard:

  • Oracle MICROS Workstation 625X.
  • Oracle MICROS Workstation 655X.
  • Oracle MICROS Workstation 6 POS Terminal.
  • Oracle MICROS Workstation 610.
  • Oracle MICROS Workstation 620.
  • Oracle MICROS Workstation 625.
  • Oracle MICROS Workstation 650.
  • Oracle MICROS Workstation 625.
  • Oracle MICROS Workstation 655.
  • Oracle MICROS Compact Workstation 310.
  • Oracle MICROS Express Station 4 Series.
  • Oracle MICROS Express Station 400.
  • Oracle MICROS Express Station 410.
