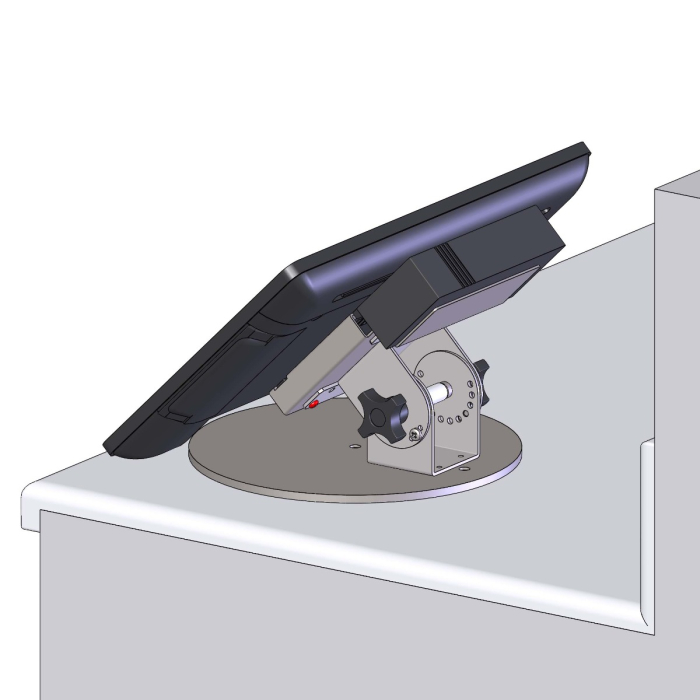

Countertop Movable Pedestal Mount with a WS6 Pan and Tilt Head and a PS holder

$145.00
In stock
Product Code
80622-MICROS
More Information
Product Code 80622-MICROS
Availability In Stock
Delivery Time 1-7 Days
Note Product usually ships within 24 hours of payment/order.
  • Click the "Product Attachments" tab in the middle of this page to download the Product Information Sheet.(PDF)

General Features

  • Both of these Countertop mounts support all Oracle MICROS terminals with the MICROS Quick Connect tabs and slots mounting standard for Point of Sale / POS, Kitchen Display Systems / KDS in commercial kitchens, retail, restaurants, offices, industry, shops, medical, maritime, schools, laboratory and many other applications.
  • An innovative set of joint assemblies allow two axis of position adjustment when attached to a Countertop or other horizontal surface.
  • Beyond having flexible articulation; this mount has the key feature of being easily LOCKED in any desired screen position; this ability is VERY important when using touch screen equipment as it PREVENTS the screen from moving away from the user each time a touch is input.
  • This assembly supports up to 15 lbs., is made of steel and finished with a durable, black, semi-gloss, powder coat that resists fingerprints.
  • This mounting package includes the following individual product components PN 50575, PN 67082, PN 80805.
  • Visit kitchendisplaysystems.com for a free, easy to understand tutorial that covers all aspects of Kitchen Display Systems knowledge!

MICROS Compatible Quick Connect Adapter plate, Pan and Tilt Head with Preset Pan Tension on a Riser

  • Tightening the 2 four-point knobs applies variable clutching resistance to allow adjustment of the up and down tilt position of the screen. Tighten either of the two 10-32 Phillips head screws adjacent to the four-point knobs to permanently secure the tilt position of the terminal.
  • The side-to-side pan position resistance is preset at the factory with a 5/16” bolt in the center of the lower plate and should not need adjustment. However, a ½” wrench can be used to adjust the tension on this bolt. A 10-32 Phillips head screw on the lower Panning plate can be tightened to somewhat permanently secure the pan position.

12” Round Base Plate features

  • The 12” round base plate is equipped with six, adhesive, non-slip, rubber feet (not shown in image above.)
  • The Riser Assembly can be attached to the Base Plate at the center or offset positions; however as shipped from the factory; the riser is located at the offset position.
  • Know that the lower riser screw that secures the riser assembly to the base plate was installed with thread locking compound to prevent the screw from loosening and the riser turning.
  • It is challenging; but possible to remove this screw using a cordless impact driver and a large Philips head bit. Important Note: removal of the lower riser screw should only be attempted by qualified persons.

We believe in ethical SEO relevancy; the following section was included to assist the all-knowing algorithms in locating this page; however, some humans like it too.

  • MICROS Countertop mount, MICROS Countertop mounting bracket, MICROS Countertop mount bracket, MICROS Terminal Countertop mount, MICROS Terminal Countertop mounting bracket, MICROS Terminal Countertop mount bracket.
  • MICROS Point of Sale terminal Countertop mount, MICROS KDS Countertop mount, MICROS KDS Countertop mounting bracket, MICROS KDS Countertop mount bracket, MICROS Kitchen Display System Countertop mount.

Below is a partial list of Oracle MICROS compatible Terminals that use the MICROS Quick Connect tabs and slots mounting standard:

  • Oracle MICROS Workstation 625X.
  • Oracle MICROS Workstation 655X.
  • Oracle MICROS Workstation 6 POS Terminal.
  • Oracle MICROS Workstation 610.
  • Oracle MICROS Workstation 620.
  • Oracle MICROS Workstation 625.
  • Oracle MICROS Workstation 650.
  • Oracle MICROS Workstation 625.
  • Oracle MICROS Workstation 655.
  • Oracle MICROS Compact Workstation 310.
  • Oracle MICROS Express Station 4 Series.
  • Oracle MICROS Express Station 400.
  • Oracle MICROS Express Station 410.
