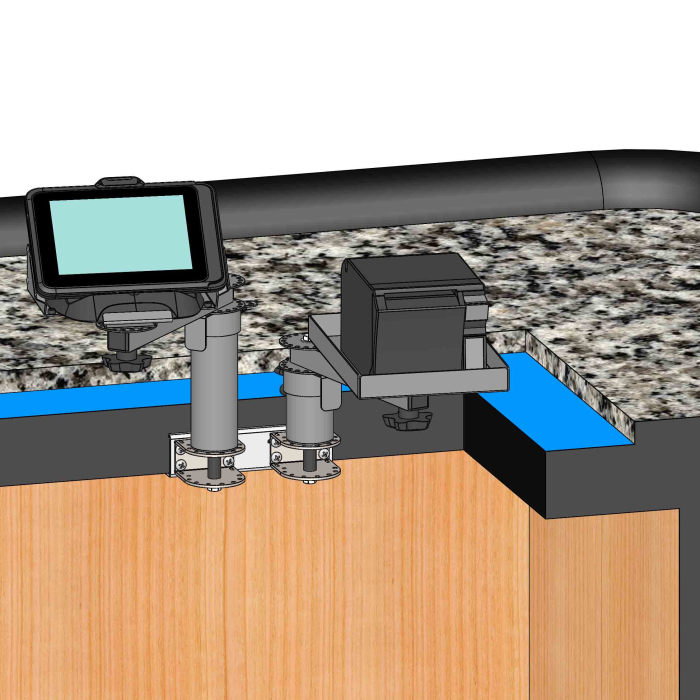

Under Counter Mount with a 3" riser, a 6" riser, two adjustable 8" arms and panning heads for a MICROS 720 Tablet with drop in charger and a Flat Printer Tray

$480.00
In stock
Product Code
80248-505
Under Counter Mount with a 3" riser, a 6" riser, two adjustable 8" arms and panning heads for a MICROS 720 Tablet with drop in charger and a Flat Printer Tray is available to buy in increments of 1
More Information
Product Code 80248-505
Availability In Stock
Delivery Time 1-7 Days
Note Product usually ships within 24 hours of payment/order.

General Features

  • This assembly supports the MICROS Oracle 720 tablet in landscape orientation with a drop in charging cradle that permits continuous daily installation and removal of the tablet.
  • This support solution is part of a full line of mounting brackets for rugged point of sale tablets including mounts for hand held POS and drop in chargers for mobile POS in hospitality environments.
  • This system attaches to the underside of a counter top or shelf.
  • The angled sides of the mount assist in guiding the tablet into the cradle and provide additional support once the tablet is installed.
  • The cut-out sections on the sides of the mount provide full access to the battery charging slot in the rear of the cradle.
  • Includes a pair of hook and loop straps to secure the power supply transformer and surplus cable to the back of the tablet mount.
  • Installing the charging cradle onto the mount can be completed in seconds; first by inserting the cradle and then slightly tightening the rear lock screw.
  • If necessary; the power connector can be easily unplugged from the charging cradle without having to remove the cradle from the mount.
  • This support system allows adjustable side to side pan position adjustment of the 720 tablet and printer tray; use the five-point knobs on the undersides of the ends of the arms to adjust and secure the tablet and tray pan positions.
  • The side-to-side position of the arms on the risers that supports the tablet and print tray panning assemblies can be adjusted and locked into position at the top of the riser assembly mounting point with the three-point knob.
  • An adjustable stop screw prevents the arm from rotating in a complete circle on the top of the riser section.
  • This mounting package includes the following individual components PN 50165, PN 50046, PN 67048, PN 67015, PN 67016,PN 67017, PN 67145, PN 67090.

Mounting Plate Features

  • The under-counter mounting plate permits attachment of a second optional arm and a variety of different pan and tilt heads to support any touch screen, terminal or flat panel monitor right next to the printer.
  • Attaches to the underside of a counter top, a shelf or any other flat horizontal surface


Adjustable Arm Features

  • The 8” arm can be easily adjusted side to side and locked in any position at the mounting surface with the five-point hand knob; the position can also be permanently secured by tightening the lock screw.

Printer Tray Features

  • The interior dimensions of the Flat Printer Tray are 6½” Wide by 10¼” Long by 1” Deep.
  • The 8” arm supporting the Printer Tray can be easily adjusted side to side and locked in any position at the mounting surface with the five-point hand knob; the position can also be permanently secured by tightening the lock screw.
  • The Flat Printer Tray position can be easily adjusted side to side and locked in any position at the end of the arm with the five-point hand knob under the tray; the position can also be permanently secured by turning the lock screw on the bottom bracket of the tray into one of the holes in the end of the arm. • The printer tray includes multiple tie points form adding cable ties to secure the extra cabling and power supply.
  • The positions of the 8” arms adjust without tools to permit the flat printer tray and pan and tilt head to travel horizontally, allowing a range of positioning options.

Riser & Riser Cap Features

  • The 8” arm supporting the screen pan and tilt head can be easily adjusted side to side and locked in any position at the Riser with the three point hand knob.
  • Integral stop details on the riser and arm can be located at any setting to prevent cable damage when the arm supporting the screen or the printer is rotated around the riser.
  • The screen pan and tilt heads include integral stop details that limit a full rotation to the right or left to prevent cable damage.
  • The pan and tilt head or printer can be easily removed from the arm and attached directly to the top of the riser.
  • The riser cap incorporates a cable tie point to secure the cables so that they will travel safely as the arm is rotated.
  • A 3”or 6” riser elevates the 8” arm above the mounting surface and permits the screen pan and tilt head or printer tray to travel horizontally and to allow a wide range of positioning options.
  • Please specify either 3" or 6" riser(s) when ordering.
  • To order this mount with two 6” Risers, use P/N 80246-505
  • To order this mount with two 3” Risers, use P/N 80247-505
  • To order this mount with one 3” Riser and one 6” Riser, use P/N 80248-505
