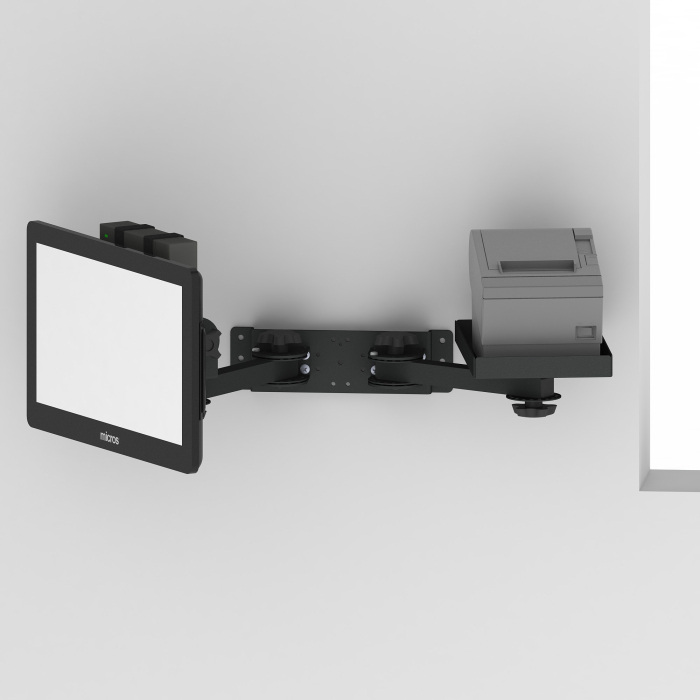

Wall Mount with two adjustable 8” arms, a WS6 Pan and Tilt Head, printer tray and a PS holder

$365.00
In stock
Product Code
80003-MICROS
More Information
Product Code 80003-MICROS
Availability In Stock
Delivery Time 1-7 Days
Note Product usually ships within 24 hours of payment/order.
  • For complete specifications of this assembly; download the PDF Product Information Sheet; click the "Product Attachments" tab in the middle of this page.

General Features

  • This wall mount supports all Oracle MICROS terminals with the MICROS Quick Connect tabs and slots mounting standard and a most POS printers for Point of Sale / POS, Kitchen Display Systems / KDS in commercial kitchens, retail, restaurants, offices, industry, shops, medical, maritime, schools, laboratory and many other applications.
  • An innovative set of joint assemblies allow 2-3 axis of position adjustment of each arm when attached to a wall or other flat vertical surface. This assembly supports up to 15 lbs., is made from steel and finished with a durable, black, semi-gloss, powder coat that resists fingerprints.
  • This assembly includes a wall mounting plate with a with two Standoff brackets that allow the arms and the MICROS compatible pan and Tilt Head and the printer tray to travel horizontally side to side from the wall surface allowing a wide range of positioning options.
  • Beyond having flexible articulation; this mount has the key feature of being easily LOCKED in any desired screen position; this ability is VERY important when using touch screen equipment as it PREVENTS the screen from moving away from the user each time a touch is input.
  • This mounting package includes the following individual product components PN 50044, PN 50046, PN 67048, PN 67080, PN 67090, PN 80805.
  • Visit kitchendisplaysystems.com for a free, easy to understand tutorial that covers all aspects of Kitchen Display Systems knowledge!

Oracle MICROS compatible Pan and Tilt Head on an Adjustable Arm

  • Tightening the 2 four-point knobs applies variable clutching resistance to allow adjustment of the up and down tilt position of the screen. Tighten either of the two 10-32 Phillips head screws adjacent to the four-point knobs to permanently secure the tilt position.
  • Tightening the five- point knob below the end of the Arm applies variable clutching resistance to allow adjustment of the side-to-side pan position of the screen. Tighten the 10-32 Phillips head screw on the lower Panning plate into one of the holes in the end of the arm to permanently secure the pan position.

Flat Printer Tray on an Adjustable Arm

  • A universal mount that works with most POS printers.
  • The interior dimensions of the Flat Printer Tray are 6½” W X 10¼” L X 1” D.
  • Includes a 1¼” diameter hole on one end for routing the power and data cables below the tray if desired.
  • Includes multiple sets of tie point holes for inserting cable ties to secure the power and data cables if desired.
  • Tightening the five- point knob below the end of the Arm applies variable resistance to allow adjustment of the side-to-side pan position of the Tray. A 10-32 Phillips head screw in one of the center holes can be tightened into one of the holes on the end of the arm to permanently secure the side-to-side pan position.

Double Wall Mounting Plate, 2 Standoff Brackets and 2 Arms

  • The Standoff brackets connect the arms to the mounting plate and allow them to travel horizontally allowing a wide range side to side positioning options.
  • Attach the mounting plate to the Wall or other flat vertical surface with appropriate fasteners.
  • Note that the Standoff brackets and arms can be attached to the mounting plate with the mounting plate in either vertical or horizontal orientation.
  • Tightening the five- point knobs on the tops of the Standoff brackets applies variable clutching resistance to allow adjustment of the side-to-side pan positions of the Arms. To permanently lock the side-to-side pan position of the Arms; slightly loosen the 10-32 Phillips head screw on the top of the Standoff bracket, move the arm to the new desired permanent position; tighten the screw into one of the holes in the end of the arm to secure the new position.

We believe in ethical SEO relevancy; the following section was included to assist the all-knowing algorithms in locating this page; however, some humans like it too.

  • MICROS Wall mount, MICROS Wall mounting bracket, MICROS Wall mount bracket, MICROS Terminal Wall mount, MICROS Terminal Wall mounting bracket, MICROS Terminal Wall mount bracket.MICROS Point of Sale terminal Wall mount, MICROS KDS Wall mount, MICROS KDS Wall mounting bracket, MICROS KDS Wall mount bracket, MICROS Kitchen Display System Wall mount.
  • Printer Wall bracket, printer Wall mount, printer Wall mount bracket, printer Wall mounting bracket, Printer Wall Tray, Printer Shelf, Kitchen printer, restaurant printer, POS printer, Point of Sale printer, Epson Printer shelf, Healthcare printer, Industrial printer, ID printer, Office printer, Manufacturing printer.

Below is a partial list of Oracle MICROS compatible Terminals that use the MICROS Quick Connect tabs and slots mounting standard:

  • Oracle MICROS Workstation 625X.
  • Oracle MICROS Workstation 655X.
  • Oracle MICROS Workstation 6 POS Terminal.
  • Oracle MICROS Workstation 610.
  • Oracle MICROS Workstation 620.
  • Oracle MICROS Workstation 625.
  • Oracle MICROS Workstation 650.
  • Oracle MICROS Workstation 625.
  • Oracle MICROS Workstation 655.
  • Oracle MICROS Compact Workstation 310.
  • Oracle MICROS Express Station 4 Series.
  • Oracle MICROS Express Station 400.
  • Oracle MICROS Express Station 410.
