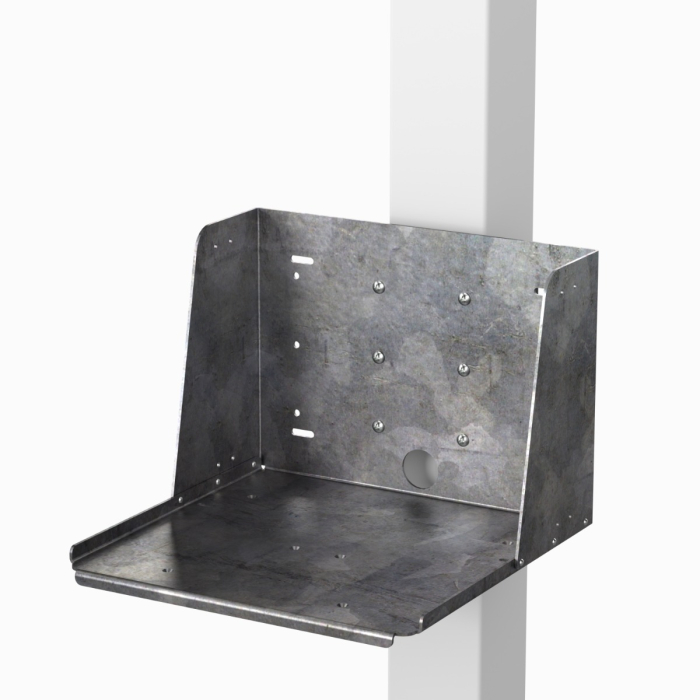

4X4 Clamp On Mount + Side Shelf For Mini Cash Drawer Or Other Peripherals
$385.00
In stock
Product Code
81580
Product Code | 81580 |
---|---|
Availability | In Stock |
Delivery Time | 1-7 Days |
Note | Product usually ships within 24 hours of payment/order. |
- For complete specifications of this assembly; download the PDF Product Information Sheet; click the "Product Attachments" tab in the middle of this page.
General Features
- This versatile mounting system clamps securely at any point along a vertical 4”W X 4”D pole assembly with the mounting base oriented parallel to any of the four sides of a pole without tools.
- When the Clamp on Side Shelf is attached to the 4X4 pole; the rear surface of the Shelf it is located approximately 2” out from the surface of the vertical pole assembly.
- The side brackets of the pole clamping system are hinged at the mounting plate and close around the 4x4 pole; two four point hand knobs are inserted through the rear flanges and tightened to provide the clamping action. The knobs can be replaced with 5/16” X 1” L hex or security head bolts if desired.
- Self-tapping screws can also be installed into the pole through holes in either of the hinging side brackets to secure the mount permanently.
- The Clamp on Side Shelf mounting plate has three positions that allow the Shelf holder to be installed in the center of the plate or to be offset 3.5” to either the right or left sides.
PN 81580 4X4 Clamp on Mount + Side Shelf for Mini Cash Drawer or other peripherals |
PN | QTY | DESCRIPTION |
51109 | 1 | Side Shelf, Mounting Bracket, 4X4 Clamp On |
21272 | 1 | 4x4 Clamp On Mount Assembly |
70000 | 6 | Screw, 1/4-20 x 1/2" L, Phillips Round Head |
