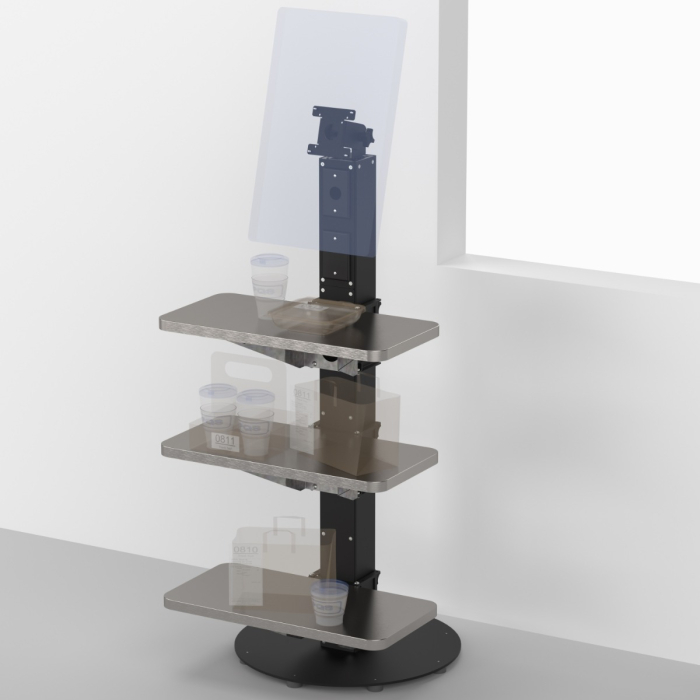

Take Out Pickup Floor Stand 49”H + 3- 12”X 24” Tables+Top 50-100mm VESA Screen Pan - Tilt mount

$4,225.00
In stock
Product Code
81527
More Information
Product Code 81527
Availability In Stock
Delivery Time 1-7 Days
Note Product usually ships within 24 hours of payment/order.
  • For complete specifications of this assembly; download the PDF Product Information Sheet; click the "Product Attachments" tab in the middle of this page.
  • This assembly is part of one of the “4X4 Pole System” product groups which consist of modular, industrial grade, multi- arm countertop, floor stand, freestanding pole and cabinet based systems designed to support multiple screens and peripheral devices.
  • All individual components are modular and interchangeable which delivers maximum versatility and adaptability.
  • Systems are available as complete, preconfigured, turnkey kits or can be custom configured to your specifications.
  • A wide variety of accessories are available; such as stainless-steel work tables and shelves, bag holders, integrated power and data outlets, several types of individual “clamp on” mounts that support screens, printers, peripherals and more.

General Features

  • 22” Round Movable Pedestal Mounting Base with 8 large, 5/8” H raised feet and a 1 ¾” round center hole for easy cable passage concealed under the base and into the pedestal.
  • The 48” H Channel Extension section is attached to a 22” Round Movable Pedestal Mounting Base, includes 2- 24”L blank Cover Plates.
  • The Pedestal or Extension Channel Top Cap with extended, 75-100mm VESA compatible screen pan and tilt head attaches to the top of the Pedestal or extension channel with 8 EA screws and has 360 degrees of side to side, horizontal pan position and Tilt position from +90 degrees to -10 degrees with all position adjustments being performed without tools. The top cap also includes an array of slots that permit a wide variety of signage or other items to be attached directly to the top cap with common fasteners.
  • 3-4X4 Clamp On 12”D x 24”L Stainless Steel Side Table clamps securely to one side and at any vertical location of a 4”W X 4”D pole assembly without tools.

We believe in ethical SEO relevancy; the following sections were included to assist the all-knowing Algorithms in locating this page; however some humans like it too.

Take Out Pickup Floor Stands

  • Food Delivery Pickup Stand, Food Delivery Pickup Stand Screen.
  • Mobile Order Pick up Stand, Mobile Order Pick up shelves with screen.
  • Pick up orders station, Pick up orders station screen.
  • Online Order Pickup stand, Online Order Pickup shelves with screen.
  • Digital Order Pickup stand, Digital Order Pickup Stand with Shelves and screen.
  • To Go Order Pickup stand, To Go Order Pickup stand with Shelves and Screen.

Digital Signage Pole Stands, Information Kiosk Floor Stands:

  • Information directory stand, Information directory Kiosk, Information Kiosk Floor Stand, Information touchscreen stand, Self-service touchscreen stand, digital media player stand, Freestanding touch screen stand. Digital signage floor stand, Universal Kiosk Floor Stand, Touchscreen Kiosk, Interactive Kiosk, Digital Kiosk, Interactive Information Kiosk, Touch screen stand, Promotional Interactive Kiosk, Digital Signage floor stand, Freestanding Kiosk, Digital Signage Pole stand.
PN 81527 Take Out Pickup Floor Stand 49”H with 22” Round Base, 3- 12”X 24” Tables, Top Pan and Tilt mount to support 50-100mm VESA Screen
PN QTY DESCRIPTION
21277 1 Base, Round, 22”, Assembly
21261 1 Movable Channel Extension Base Mounting Bracket Kit
51066 1 Channel Extension, 48"
21294 1 Cover Plate, 36" Long, Blank, Channel Extension, Kit
21298 1 Cover Plate, 12” Long, Channel Extension, 1 faceplate, blank, black, 1 faceplate, black with 1 1/4" hole Kit
21256 1 Cap, Top, Pedestal and Extension Section, Extended VESA Pan and Tilt Head Kit
81581 3 4X4 Clamp On Mount + 12” X 24” Stainless table
