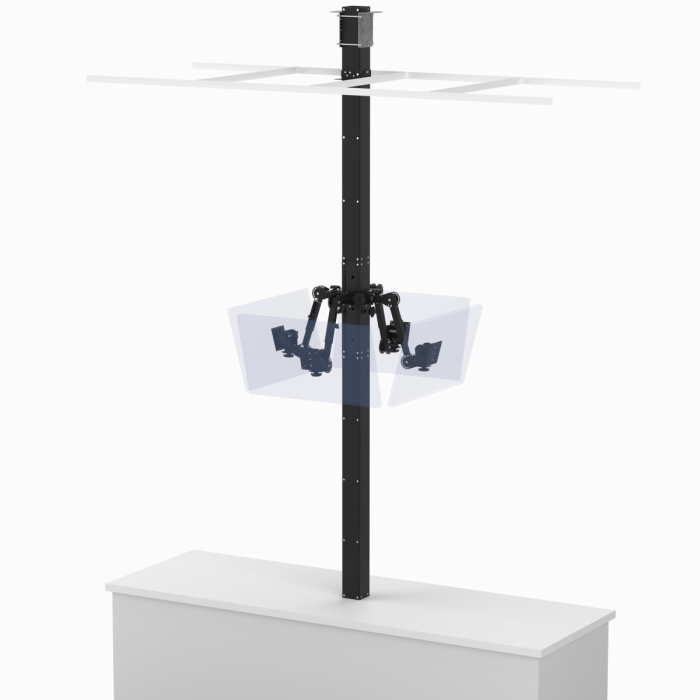

Digital Signage Kiosk Pole Stand 114” H + 4 fully articulated adjustable arms for 4:75-100mm VESA Screens

• For complete specifications of this assembly; download the PDF Product Information Sheet; click the "Product Attachments" tab in the middle of this page.
• This assembly is part of one of the “4X4 Pole System” product groups which consist of modular, industrial grade, multi- arm countertop, floor stand, freestanding pole and cabinet based systems designed to support multiple screens and peripheral devices.
• All individual components are modular and interchangeable which delivers maximum versatility and adaptability.
• Systems are available as complete, preconfigured, turnkey kits or can be custom configured to your specifications.
• A wide variety of accessories are available; such as stainless-steel work tables and shelves, bag holders, integrated power and data outlets, several types of individual “clamp on” mounts that support screens, printers, peripherals and more.

General Features

• A vertical 4”W X 4”D X 96”H Channel Extension section attaches directly to a countertop or floor with the open side closed off with blank Cover Plates.
• The innovative Arm Collar Assembly is the heart of the PED 3 Pedestal Channel system and can support attachment of up to four independently adjustable arm assemblies in four configurations: straight arms in 8” and 10” lengths, a 3- part fully articulating arm assembly and a 3- part fully articulating and extendable arm assembly. The vertical position and rotation on a Pedestal Channel are adjustable without tools.
• 4- Fully Articulating Extendable Arm Assemblies support an enhanced VESA pan and tilt head and attaches to any of four positions on an arm Collar Assembly and have 200 degrees of side to side, horizontal position adjustment without tools. The angles of upper and lower arm segments or “offset brackets” adjust to allow the middle arm section to be extended down and outward a selectable distance out from the channel assembly. The middle arm segment of this arm is telescopic and can be extended outward up to 6 inches. The Enhanced 75-100mm VESA Pan and Tilt Head assembly attaches to the end of any type of arm assembly and typically has 270 degrees of side to side, horizontal pan position and Tilt position from +90 degrees to -10 degrees and screen side to side tilt position can be adjusted 15 degrees; all position adjustments are performed without tools.
• The Channel Extension Pass Through Mounting Base Bracket attaches to the bottom of the Channel Extension assembly directly to the floor, a countertop or any other solid, horizontal surface.
• The Channel Extension Ceiling Trim Ring Kit creates an attractive square finished frame around the location where the Extension penetrates the ceiling.
• The Above Ceiling Mounting Plates Kit PN 22004 includes two heavy duty galvanized steel clamping plates that attach to the Channel Extension Section at any point along its length by tightening two pairs of bolts, additional materials are then used to bracing that attaches the plates to the structure above the ceiling.
