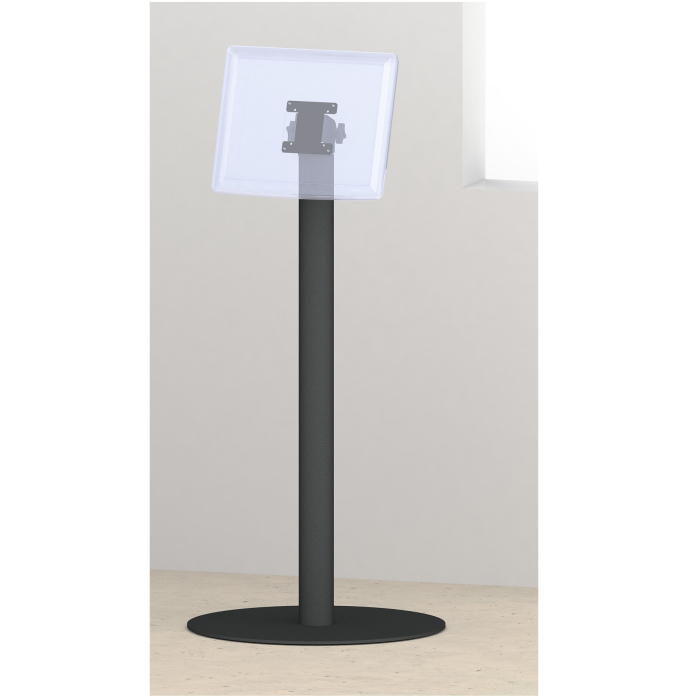

Floor Stand With VESA Pan and Tilt Head, 22" base
| Product Code | 80490 |
|---|---|
| Availability | In Stock |
| Delivery Time | 1-7 Days |
| Note | Product usually ships within 24 hours of payment/order. |
- For complete specifications of this assembly; download the PDF Product Information Sheet; click the "Product Attachments" tab in the middle of this page.
General Features
-
Includes a 75/100mm VESA compatible pan and tilt head.
-
The base is made of a heavy, one piece, 22" diameter steel plate with rubberized non slip pads applied to the bottom surface.
-
The post section includes three 1.5" diameter round cable path openings located near the top, bottom and just above center.
-
The entire assembly is made from steel and finished with a durable, black, low, gloss, micro wrinkle powder coat that resist fingerprints.
-
Includes 4 EA M4 X 100mm long VESA screws.
-
Includes 3 EA 5/16-18 X 1/2" long flat socket head lock screws and a 3/16" HEX wrench to attach the base plate to the post.
Pan and Tilt Head Features
-
75/100mm VESA compatible.
-
The screen tilt position can be easily adjusted up and down and secured in any position with two four point hand knobs. The screen tilt position clutching function uses a pair thick rubber washers to provide a smooth range of resistance dependent upon how tight or loose the two four point hand knobs are adjusted. The screen tilt position can also be permanently secured by tightening two lock screws (included).
-
The pan position, or side to side rotation, can be adjusted without tools simply by grasping the sides of the screen and gently turning it. A thick rubber washer provides a smooth range of motion resistance. A locking screw (included) can be used to limit the side rotation to 90 degrees on each side to prevent twisting the cables.
