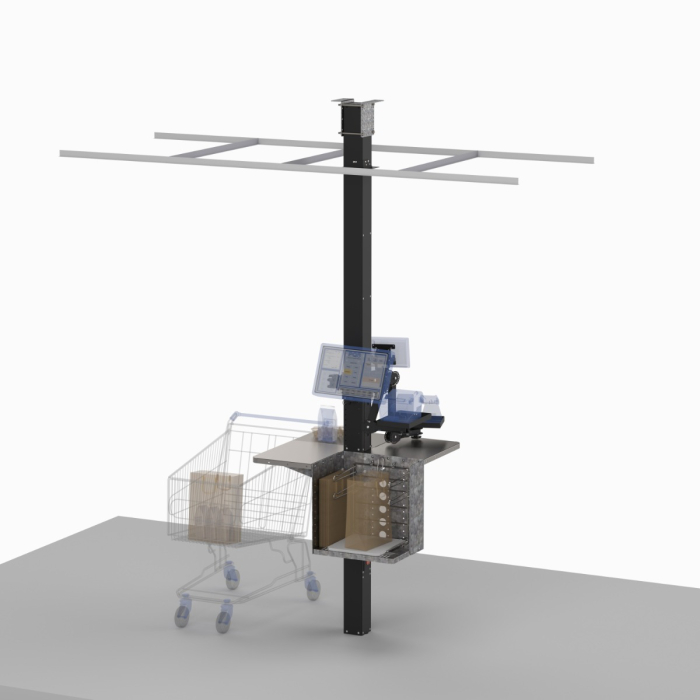

Cashier Pole Stand 102” H + 30”X 30” Table + Accessory Pack 3

• For complete specifications of this assembly; download the PDF Product Information Sheet; click the "Product Attachments" tab in the middle of this page.
• This assembly is part of one of the “4X4 Pole System” product groups which consist of modular, industrial grade, multi- arm countertop, floor stand, freestanding pole and cabinet based systems designed to support multiple screens and peripheral devices.
• All individual components are modular and interchangeable which delivers maximum versatility and adaptability.
• Systems are available as complete, preconfigured, turnkey kits or can be custom configured to your specifications.
• A wide variety of accessories are available; such as stainless steel work tables and shelves, bag holders, integrated power and data outlets, several types of individual “clamp on” mounts that support screens, printers, peripherals and more.

General Features

• The 18” H 4”W x 4”D square pedestal assembly includes an array of 2” cable passage holes on one side, 3- 6” H doors with magnetic latches, internal storage for power supplies and cables, 2 sets cable tie straps every 6“along the interior, 2” round, power outlet with a single 110V power receptacle and 2- USB A changing ports.
• The innovative Arm Collar Assembly is the heart of the PED 3 Pedestal Channel system and can support attachment of up to four independently adjustable arm assemblies in four configurations: straight arms in 8” and 10” lengths, a 3- part fully articulating arm assembly and a 3- part fully articulating and extendable arm assembly. The vertical position and rotation on a Pedestal Channel are adjustable without tools.
• 2- 8” Straight Adjustable Arm Assembly support a VESA pan and tilt head and attaches to any of four positions on an arm Collar Assembly and have 200 degrees of side to side, horizontal position adjustment without tools. The Standard 75-100mm VESA Pan and Tilt Head assembly attaches to the end of any type of arm assembly and typically has 270 degrees of side to side, horizontal pan position and Tilt position from +90 degrees to -10 degrees; all position adjustments are performed without tools.
• 1- Fully Articulating Arm Assembly supports a printer /peripheral tray and attaches to any of four positions on an arm Collar Assembly and have 200 degrees of side to side, horizontal position adjustment without tools. The angles of upper and lower arm segments or “offset brackets” adjust to allow the middle arm section to be extended down and outward a selectable distance out from the channel assembly. The POS Printer or Peripheral Equipment Tray measures 6½” W X 10¼”L X 1” D tray and supports a POS printer or one or more EMV, QR or Bar Code readers or other small equipment. The tray attaches to the end of any of the four arm assemblies, the side to side pan position and can be rotated 360 degrees; all position adjustments are performed without tools.
• 1- Fully Articulating Extendable Arm Assembly supports a printer /peripheral tray and attaches to any of four positions on an arm Collar Assembly and have 200 degrees of side to side, horizontal position adjustment without tools. The angles of upper and lower arm segments or “offset brackets” adjust to allow the middle arm section to be extended down and outward a selectable distance out from the channel assembly. The middle arm segment of this arm is telescopic and can be extended outward up to 6 inches. The POS Printer or Peripheral Equipment Tray measures 6½” W X 10¼”L X 1” D tray and supports a POS printer or one or more EMV, QR or Bar Code readers or other small equipment. The tray attaches to the end of any of the four arm assemblies, the side to side pan position and can be rotated 360 degrees; all position adjustments are performed without tools.
• Includes 2- 4 section, square, 30”W x 30”D Stainless Table Assembly has smooth, rounded, outside corners and attach at any point along any vertical 4”W X 4”D pole assembly and includes a 2” diameter hole with grommet for cable passage.
• The 18” H Pedestal channel is joined with a 4”W x 4”D Channel Extension sections; 1-36”H below the pedestal and another that is 96”H attached above the pedestal with the open side closed off with Cover Plates that are blank and with single gang power and data outlets to create a assembly that 150” H.
• The Pedestal Channel and Channel Extension Pass Through Mounting Base Bracket attaches to the bottom of either a Pedestal Channel section or a Channel Extension section to a Mounting Base Plate or directly to the floor, a countertop or any other solid, horizontal surface. The mounting bracket has 8 EA 3/8” mounting holes and a 1 3/4” hole in the center to allow a number of flexible conduits, cabling to be passed through as needed.
• The Channel Extension Ceiling Trim Ring Kit creates an attractive square finished frame around the location where the Extension penetrates the ceiling.
• The Above Ceiling Mounting Plates Kit PN 22004 includes two heavy duty galvanized steel clamping plates that attach to the Channel Extension Section at any point along its length by tightening two pairs of bolts, additional materials are then used to bracing that attaches the plates to the structure above the ceiling.

We believe in ethical SEO relevancy; the following sections were included to assist the all-knowing Algorithms in locating this page; however some humans like it too.

Cashier Pole Stands

• Point of Sale floor stand kiosk, POS terminal Display floor stand with arms.
• Floor stand Point of sale support system, Cashier floor stand with arms.
• VESA POS Mounting Solution with arms for printer and Pin pad holder.
• Cashier floor stand for POS terminal, printer, customer display, Rear marketing display and Pin pad or payment terminal.

Compatible POS Systems:

• Lightspeed, logic controls, NCR, elotouch, posiflex, Poster POS, ehopper, Beetronics, Tysso, favpng, Touch Dynamic, FastSpring, CAKE, Erply, Sapaad,Upserve,Salesforce Commerce Cloud, Block, Miva Merchant, Epos Now, QuickBooks POS, Shopify, VEND, Revel, Clover, CovaPOS, Oracle NETSUITE, GoDaddy, Helcim, Epos Now, Upserve POS, Elo, CardConnect, NCR, ALOHA, SQUARE, Posnation, KORONA POS,BEMETECH, toast, Touchbistro, LAVU, Partnertech, MICROS ORACLE and frankly any system with a 50mm, 75mm or 100mm VESA compatible mounting standard.

Partial List of compatible printers that fit the interior dimensions of our Printer Trays: 6½” W X 10¼” L X 1” D :

• Anser U2, Brother QL 800, Brother PTP700, Citizen CT-E351, Clover P500, Clover Mini, Custom America CT-E351, Dymo LabelWriter 450, Dymo LabelWriter Wireless, Dymo LabelManager PnP, Epson TM-T88V/VI, Epson TM- T20II, EpsonTM-U220 Type B & D, POS-X Evo HiSpeed, Rollo Printer, Sato FX3-LX, Sato WS2, Square Terminal, Star Micronics mC-Print3.
