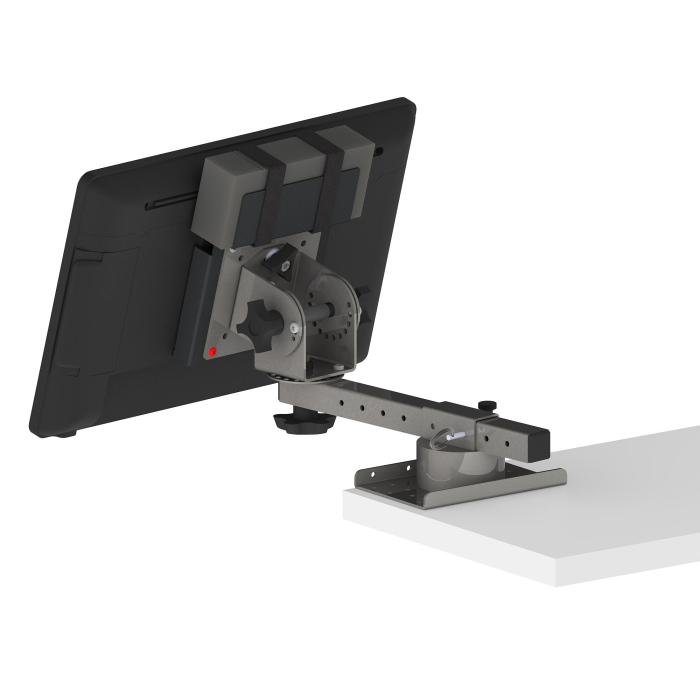

Shelf Edge Mount with an Adjustable Arm, a Panning Mounting Plate and a WS6 Biased Pan and Tilt Head

• This shelf edge or counter top mount is designed for use as a universal support system for the Oracle MICROS Workstation 6 display screen. It can be used for Point of Sale / POS, Kitchen Display Systems / KDS in commercial kitchens, retail, restaurants, offices, industry, shops, medical, maritime, schools, laboratory and many other applications.

• Attaches to a counter top, shelf, work bench or any other flat horizontal surface.

• Provides five axis of movement that can be adjusted and locked into place without tools .

• The arm can be extended forward and back in 1/2” increments and locked in place with a quick release pin.

• The arm can rotate around the base 360°

• Includes a power supply holder.

• The mount, arm and head are made from steel and finished with a durable, chrome, high gloss powder coat that emulates the look of stainless steel. The power supply holder is made from steel and finished with a durable, black, low gloss, micro wrinkle powder coat that resists fingerprints.

25LB Panning Countertop or Shelf Edge Mounting Plate Features

• Attaches to a countertop, shelf, work bench or any other flat horizontal surface.

• Panning (rotation) range is 360° and can be locked in place in 10° increments by tightening a thumbscrew.

• Includes an easy to use, quick release, lock pin and leash assembly.

• Includes multiple slots for cable tie points.

Adjustable Arm Features

• Can be extended forward and back from the mounting edge in 1/2” increments and secured in place with a quick release lock pin.

• Supports a biased, pan and tilt head that can be rotated and secured in any position with a five point hand knob. This position can also be permanently secured by tightening a lock screw.

• A thick nitrile washer provides a positive, non slip, clutching grip.

Biased Pan and Tilt Head Features

• This assembly includes a 75/100mm VESA compatible screen biased, pan and tilt head that is designed specifically for the Oracle MICROS Workstation 6 display screen.

• The bias position, used to level the screen horizontally, can be easily adjusted with a three point knob.

• The screen pan position, or rotation, can be easily rotated side to side and secured in any position with a five point knob. The pan position can also be permanently secured by tightening a lock screw.

• The screen tilt position can be easily adjusted up and down and secured in any position with two four point hand knobs. The tilt position can also be permanently secured by tightening two lock screws.

• Thick nitrile rubber washers provide a positive, non slip, clutching grip to insure the head stays in position.

Power Supply Holder Features

• Conveniently holds the power supply required for the Oracle MICROS Workstation 6 display screen.

• Uses two velcro straps (included) to easily secure the power supply in the holder.

• Includes four M4 screws to attach the power supply holder to the display screen.

• Made from 14 gauge steel and finished with a durable, black, low gloss, micro wrinkle powder coat that resists fingerprints.
