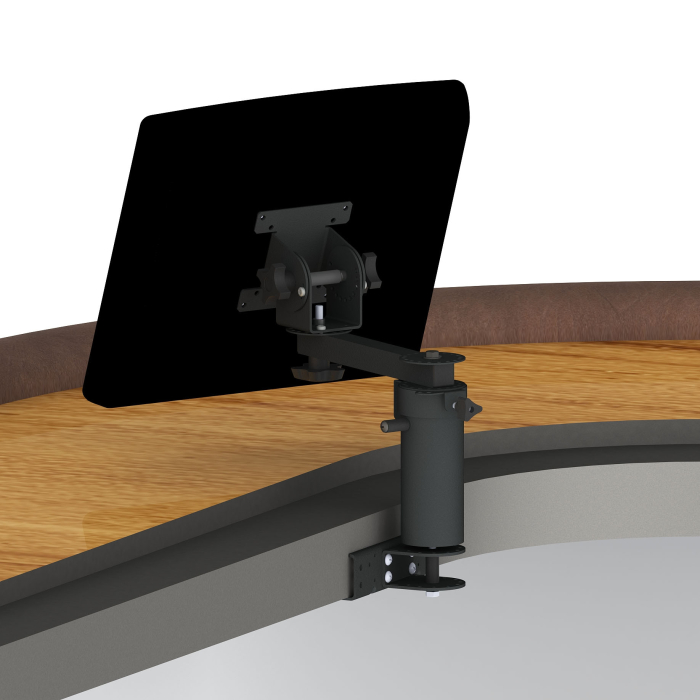

TOAST Compatible Under Counter Mount for Terminal +3” Riser + Adjustable Arm + Pan-Tilt Head

General Features

• This under counter mount can be used as a universal support system for all VESA compatible monitors, touchscreens and terminals for Point of Sale / POS, Kitchen Display Systems / KDS in commercial kitchens, retail, restaurants, offices, industry, shops, medical, maritime, schools, laboratory and many other applications.

• An innovative set of joint assemblies allow three axis of position adjustment on each arm when attached to the underside of a countertop or other horizontal surface.

• Beyond having flexible articulation; this mount has the key feature of being easily LOCKED in any desired screen position; this ability is VERY important when using touch screen equipment as it PREVENTS the screen from moving away from the user each time a touch is input.

• This arm of this assembly supports up to 15 lbs. This assembly is made of steel and is finished with a durable, black, low gloss, micro wrinkle powder coat that resists fingerprints.

• This mounting package includes the following individual product components PN 50046, PN 67016, PN 67015, PN 67048, PN 50165, PN 67080.

• Visit kitchendisplaysystems.com for a free, easy to understand tutorial that covers all aspects of Kitchen Display Systems knowledge!

Standard VESA 75-100mm Pan and Tilt Head on an Adjustable Arm

• A universal mount that works with any 75mm or 100mm VESA compatible screen.

• Tightening the 2 four-point knobs applies variable clutching resistance to allow adjustment of the up and down tilt position of the screen. Tighten either of the two 10-32 Phillips head screws adjacent to the four-point knobs to permanently secure the tilt position.

• Tightening the five- point knob below the end of the Arm applies variable clutching resistance to allow adjustment of the side-to-side pan position of the screen.

• Tighten the 10-32 Phillips head screw on the lower Panning plate into one of the holes in the end of the arm to permanently secure the pan position.

• Includes 4 pieces of M4 Phillips head screws to attach the VESA mounting plate to the back of the screen.

Riser, Riser Cap and Arm

• The Riser Cap allows an arm to rotate around the top of a Riser assembly.

• Loosening the three - point knob on the side of the Riser Cap allows adjustment of the side-to-side pan position of the arm around the riser assembly. Tightening the knob locks the position of the arm.

• The Riser cap incorporates a cable tie point to secure the cables so that they will travel safely as the arm is rotated.

• The Riser Cap interacts with the Riser Cap Stop on the side of the Riser to prevent the arm from making a full rotation around the riser. Refer to the Riser and mounting plate section for instructions on setting the position of the Riser Cap Stop.

Under counter Mounting Plate with Stand off Bracket, Riser, Riser Cap and Arm

• The Riser section elevates the arm above the mounting surface and permits the screen pan and tilt head, or printer tray, to travel horizontally allowing a wide range of positioning options.

• Attach the mounting plate to the underside of the counter top or other flat horizontal surface with appropriate fasteners.

• Evaluate the side-to-side range of motion of the arm that are attached to the Riser Cap.

• The Riser Cap Stop prevents the Riser cap and arm from rotating a full 360 degrees around the Riser. It may be advantageous to relocate the stop position to optimize the side-to-side range of motion of the arm for your application.

• To reset the position of the Riser Cap Stop; Turn the mount so that you can access the bottom of the mounting plate, slightly loosen the 5/16-18 bolt with a ½” wrench, slightly loosen the 10-32 Phillips head riser lock screw on the underside of the mounting plate; carefully rotate the riser to locate the stop at the new desired position; then retighten the bolt and screw.

• The Riser Cap incorporates a cable tie point to secure the cables so that they will travel safely as the arms are rotated.
