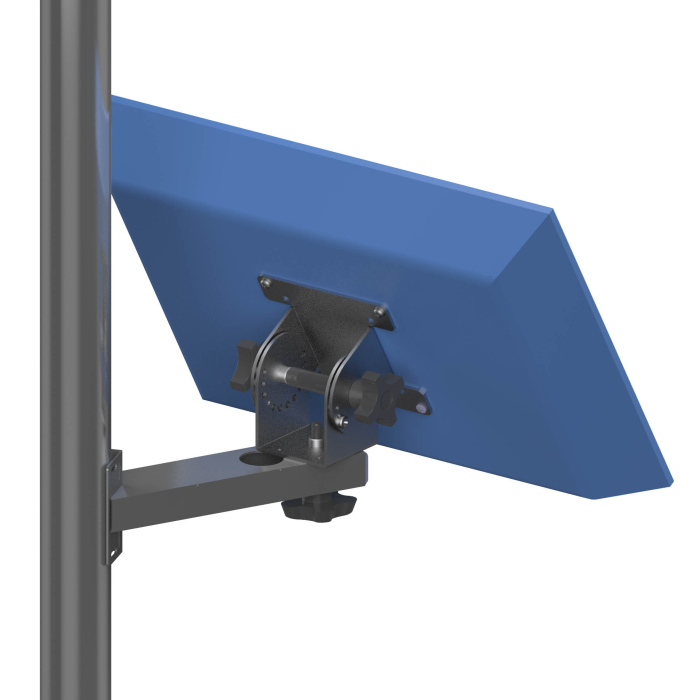

Pole Mount with an 8" Arm and a 75/100mm VESA Screen Pan & Tilt Head
$175.00
In stock
Product Code
80420
Product Code | 80420 |
---|---|
Availability | In Stock |
Delivery Time | 1-7 Days |
Note | Product usually ships within 24 hours of payment/order. |
- For complete specifications of this assembly; download the PDF Product Information Sheet; click the "Product Attachments" tab in the middle of this page.
General Features
- This pole mount can be used as a universal support system for VESA compatible monitors, touchscreens and terminals for Point of Sale / POS, Kitchen Display Systems / KDS in commercial kitchens, retail, restaurants, offices, industry, shops, medical, maritime, schools, laboratory and many other applications.
- This assembly supports up to 15 lbs.
- This mounting package includes the following individual product components PN 67095, PN 67080-CH.
Mounting Arm Features
- The mount arm can be attached to poles three different ways with a wide range of outside diameters.
- One attachment option for round pole diameters from 1” to 2.5” is to install self-drilling screws through the horizontal slots at the top and bottom of the angle section.
- To attach the mount to a round pole that is one inch or larger in diameter with hose clamps. Insert the clamps through the slim vertical slots at the top and bottom of the angle section. Refer to the hose clamp range list to select the correct size clamps for your pole diameter.
- The arm assembly is made entirely of stainless steel and can be tack welded directly to standard round stainless steel shelve support poles commonly found in commercial kitchens.
- This assembly supports touch screens, terminals or flat panel monitors up to approximately 22” or 15lbs. (some images are shown with a 17” screen installed).
- The mount arm can also be attached to the corners of any square or rectangular pole that is one inch or larger in diameter with self-drilling screws or hose clamps.
- The mount arm includes circular openings on the top and bottom surfaces and at the angle section where it contacts the pole to allow for internal routing of data and power cabling.
Standard Pan and Tilt Head Features
- This assembly includes a 75/100mm VESA compatible screen pan and tilt head. If your assembly includes an adaptor plate for a proprietary screen type; please refer to the pages that include information specific to that application.
- The screen Pan Position can be easily adjusted side to side and locked in any position with the five point hand knob. The pan position can also be permanently secured by tightening the lock screw in the base of the head to secure it into one of the holes in the round plate on the end of the arm.
- The screen Tilt Position can be easily adjusted up and down and locked in any position with the two four point hand knobs. The tilt position can also be permanently secured by tightening the lock screws on the sides of the head to secure it into one of the holes in the sides of the base bracket.
- Thick rubber washers provide an adjustable clutching action that secures the up and down tilt and side to side pan position of the head.
