Bump Bar VESA Mounting Kit for TG3 (KBA-BB17, KBA-BB20)

General Features

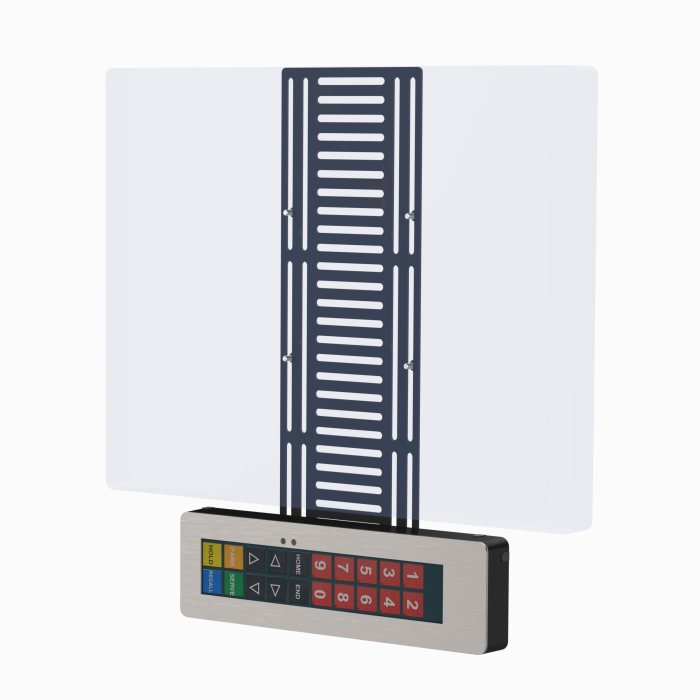

• This kit includes a KBA-BB20 Bump Bar VESA Mounting Plate that is compatible with all 50mm, 75mm and 100mm VESA compatible screens.
• The mounting plate is installed between the threaded VESA mounting holes on the rear of the screen and a VESA compatible mounting system.
• The mounting plate is intended to be installed to locate the bump bar below the front of the screen in both landscape and portrait orientation.
  Note; using screens larger than 23” class in portrait orientation may require an additional PN 50050 Universal VESA Mounting Plate to extend the overall length of the mounting plate.
• The mounting plate includes arrays of attachment slots which make bump bar position adjustment easy, requiring only a Phillips screw driver.
• The slots along the edges of the plate can also be used as cable tie points to secure and conceal the bump bar cable behind the mounting plate.
• The KBA-BB20 Bump Bar VESA Mounting Plate can be used alone or in combination with a Back of Screen Enclosure PN 80600.


• The assembly is made entirely of 16-gauge CRS steel and a durable, micro wrinkle, semi-gloss black, powder coat finish.


• Includes
  • (4) PN 70006 - M4 x 10mm L Phillips head screws that work to secure up to two plates.
  • (3) PN 70471 - #4 x 1/2" L Phillips head stainless steel screws that work to secure the bump bar to the mounting plate.
  • (3) PN 70472 - #4 flat stainless steel washers that work to secure the bump bar to the mounting plate.

• TG3 Electronics, KBA-BB17, KBA-BB20, KBA-BB17-WR-TS-RC, RS232, KBA-BB17-WR-TU-RC, KBA-BB17-WR-TP-RC, PS2, KBA-BB17-WT-T-RC, KBA-BB17-TE-TS-RC, KBA-BB17-TE-TU-RC, KBA-BB17-TE-TP-RC
