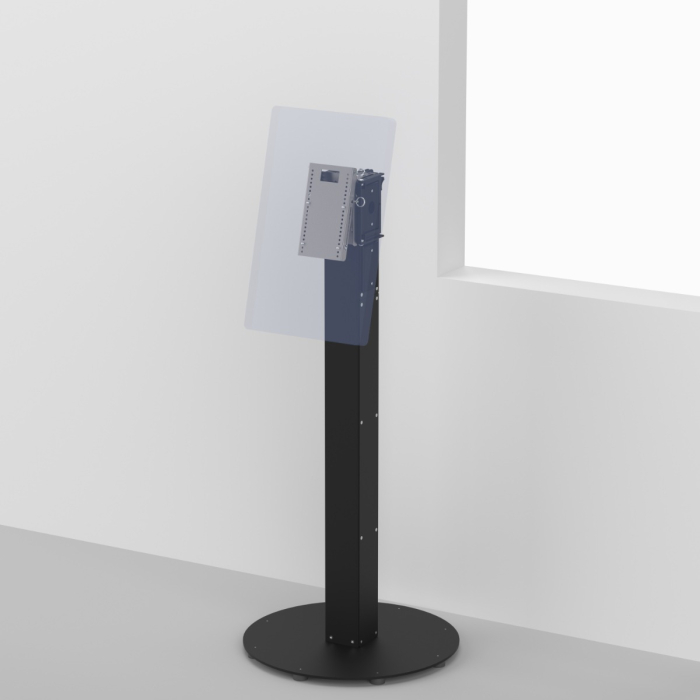

Information Kiosk Floor Stand 49”H + 22” Round Base +100mm VESA Screen Tilting Mount
$1,255.00
In stock
Product Code
81501
Product Code | 81501 |
---|---|
Availability | In Stock |
Delivery Time | 1-7 Days |
Note | Product usually ships within 24 hours of payment/order. |
- For complete specifications of this assembly; download the PDF Product Information Sheet; click the "Product Attachments" tab in the middle of this page.
- This assembly is part of one of the “4X4 Pole System” product groups which consist of modular, industrial grade, multi- arm countertop, floor stand, freestanding pole and cabinet based systems designed to support multiple screens and peripheral devices.
- All individual components are modular and interchangeable which delivers maximum versatility and adaptability.
- Systems are available as complete, preconfigured, turnkey kits or can be custom configured to your specifications.
- A wide variety of accessories are available; such as stainless-steel work tables and shelves, bag holders, integrated power and data outlets, several types of individual “clamp on” mounts that support screens, printers, peripherals and more.
General Features
- 22” Round Movable Pedestal Mounting Base with 8 large, 5/8” H raised feet and a 1 ¾” round center hole for easy cable passage concealed under the base and into the pedestal.
- The 48” H Channel Extension section is attached to a 22” Round Movable Pedestal Mounting Base, includes 1- 24”L Cover Plate with two Single Gang outlet cut-outs ; one Face Plate with a 1 1/4”DIA hole, one blank Face Plate, a 24”L blank cover Plate is installed at the lower position.
- The 4X4 Clamp on Tilting 100mm VESA Mount clamps securely to one side and at any vertical location of a 4”W X 4”D pole assembly without tools, supports a 100mm VESA compatible screen and allows either the top or bottom of the screen to be raised outward from the mounting surface up to 90 degrees.
Information Kiosk Floor Stands
- Information directory stand, Information directory Kiosk, Information Kiosk Floor Stand.
- Information touchscreen stand, Self-service touchscreen stand, digital media player stand.
- Freestanding touch screen stand. Digital signage floor stand, Universal Kiosk Floor Stand.
- Touchscreen Kiosk, Interactive Kiosk, Digital Kiosk, Interactive Information Kiosk.
- Touch screen stand, Promotional Interactive Kiosk, Digital Signage floor stand.
- Freestanding Kiosk, Digital Signage Pole stand.
PN 81501 Information Kiosk Floor Stand 49”H with 22” Round Base and a Tilting Mount that supports a 100mm VESA Screen |
PN | QTY | DESCRIPTION |
21277 | 1 | Base, Round, 22”, Assembly |
21261 | 1 | Movable Channel Extension Base Mounting Bracket Kit |
51066 | 1 | Channel Extension, 48" |
21294 | 1 | Cover Plate, 36" Long, Blank, Channel Extension, Kit |
21298 | 1 | Cover Plate, 12” Long, Channel Extension, 1 faceplate, blank, black, 1 faceplate, black with 1 1/4" hole Kit |
21254 | 1 | Cap, Top, Pedestal Channel and Extension Section Kit |
81577 | 1 | 4X4 Clamp on Mount + 100mm VESA Tilting |
