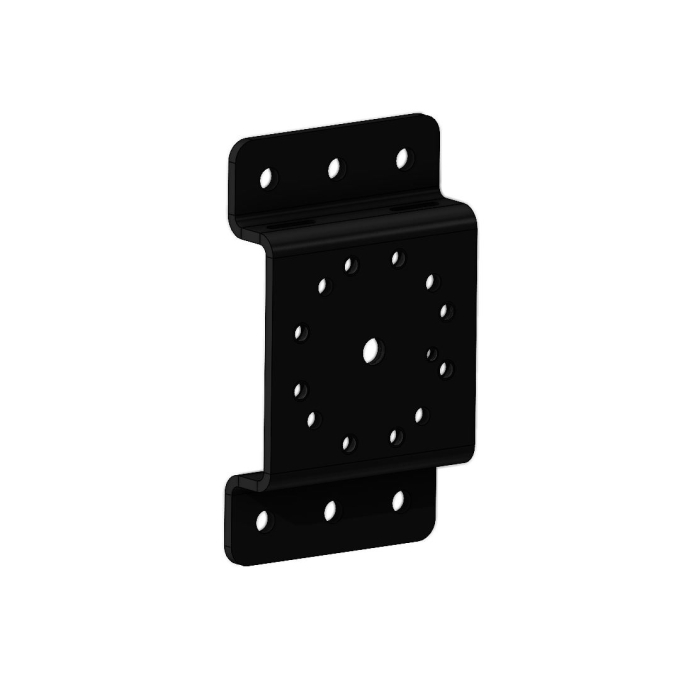

Universal Vertical or Horizontal 1 Position Mounting Plate

The 1 Position Mounting Plate is for attaching a PQS mounting arm to a vertical or horizontal surface.

The Mounting Plate can be installed onto a wall in either a vertically or horizontally orientation.

A pattern of the mounting holes allows for the installation of a stand-off bracket to the Mounting Plate in one of two orientations when the plate is installed vertically or horizontally. The stand-off bracket(s) provide the first pivot point for the arms allowing them a full range of side to side motion.

Either one arm can be used with a single plate in the vertical or horizontal mounting positions.

For ceiling or pole mounting, the 1 Position Mounting Plate attaches to any 1 ½” or smaller OD pipe with U bolts.
