Universal Tap Touch Reader VESA Mounting Plate Kit

• For complete specifications of this assembly; download the PDF Product Information Sheet; click the "Product Attachments" tab in the middle of this page.

General Features

• This kit includes a Universal Tap Touch Reader VESA mounting plate that is compatible with most Tap aka Touch Reader readers and all 50mm, 75mm and 100mm VESA compatible screens.
• The mounting plate is installed between the threaded VESA mounting holes on the rear of the screen and a VESA compatible mounting system.

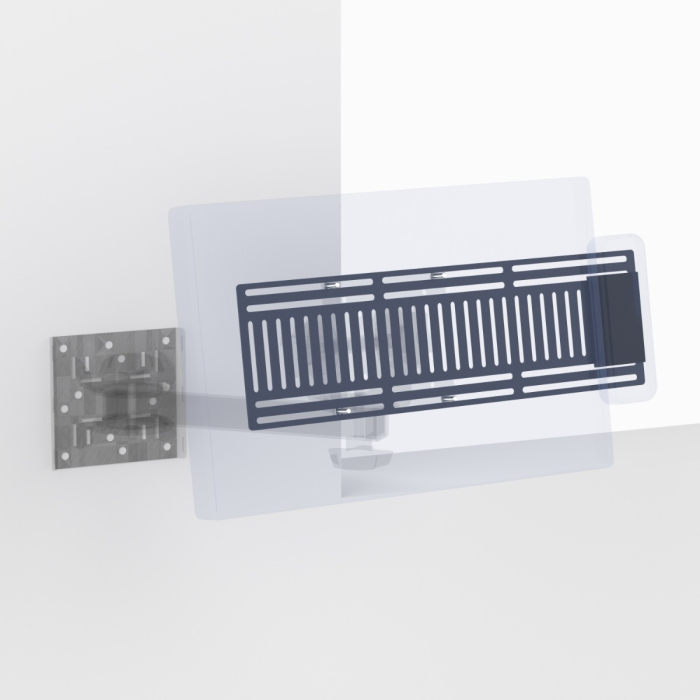

• The Universal Tap Touch Reader VESA mounting plate mounts at four positions to locate the reader on either the right or left sides of the screen or below the front of the screen in both landscape and portrait orientation. Note; screens larger than 23” class may require and additional Universal VESA mounting plate PN 50050 to extend the overall length of the mounting plate.
• Any combination of up to four of Universal VESA mounting plates and INGENICO Reader-VESA mounting plates can be installed simultaneously in an overlapping, stacked configuration to locate multiple devices on the right or left sides of the screen or below the front of the screen.
• The Universal Tap Touch Reader VESA mounting plate includes arrays of attachment slots which make reader position adjustment easy, requiring only a Phillips screw driver.
• The slots along the edges of the plate can also be used as cable tie points to secure and conceal the reader cable behind the mounting plate.
• The assembly is made entirely of 16-gauge CRS steel and a durable, micro wrinkle, semi-gloss black, powder coat finish.
• Includes PN 70006 4EA M4x10mm L Phillips head screws that work to secure up to two plates.
