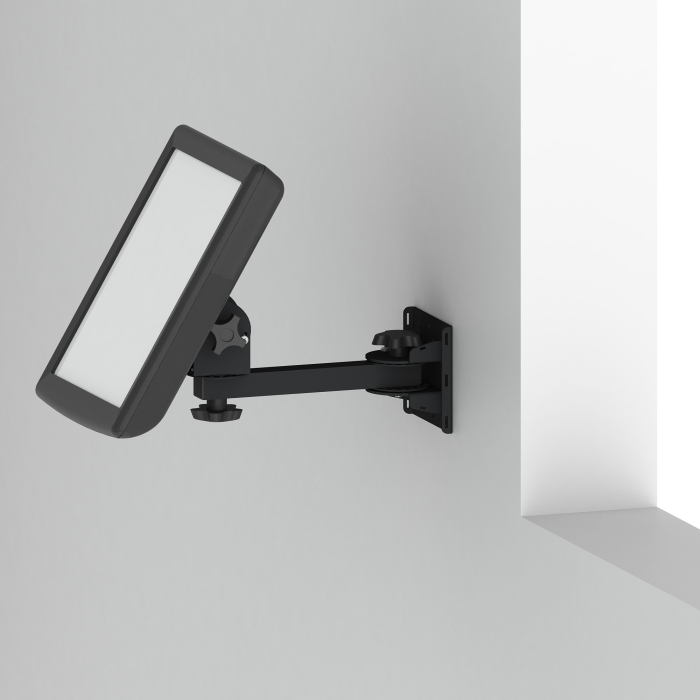

Wall Mount with an 8” arm and a 75/100mm VESA Screen Pan and Tilt Head

• For complete specifications of this assembly; download the PDF Product Information Sheet; click the "Product Attachments" tab in the middle of this page.

General Features

• This wall mount can be used as a universal support system for VESA compatible monitors, touchscreens and terminals for Point of Sale / POS, Kitchen Display Systems / KDS in commercial kitchens, retail, restaurants, offices, industry, shops, medical, maritime, schools, laboratory and many other applications.
• An innovative set of joint assemblies allow four axis of position adjustment when attached to a wall or other vertical surface.
• Beyond having flexible articulation; this mount has the key feature of being easily LOCKED in any desired screen position; this ability is VERY important when using touch screen equipment as it PREVENTS the screen from moving away from the user each time a touch is input.
• This assembly supports up to 25 lbs., is made from steel and finished with a durable, black, low gloss, micro wrinkle powder coat that resists fingerprints.
• Visit kitchendisplaysystems.com for a free, easy to understand tutorial that covers all aspects of Kitchen Display Systems knowledge!

Standard VESA 75-100mm Pan and Tilt Head on an Adjustable Arm

• A universal mount that works with any 75mm or 100mm VESA compatible screen.
• Tightening the 2 four-point knobs applies variable clutching resistance to allow adjustment of the up and down tilt position of the screen. Tighten either of the two 10-32 Phillips head screws adjacent to the four-point knobs to permanently secure the tilt position.
• Tightening the five- point knob below the end of the Arm applies variable clutching resistance to allow adjustment of the side-to-side pan position of the screen.
• Tighten the 10-32 Phillips head screw on the lower Panning plate into one of the holes in the end of the arm to permanently secure the pan position.
• Includes 4 pieces of M4 Phillips head screws to attach the VESA mounting plate to the back of the screen.

Single Position 25lb Wall Mounting Plate with Integral Standoff bracket and Arm

• The Single Position 25lb Wall Mounting Plate with Integral Standoff bracket supports one arm, allows side to side adjustment of the arm and attaches to any flat, smooth vertical surface.
• Attach the mounting plate to the Wall or other flat vertical surface with appropriate fasteners.
• Tightening the five- point knob on the top of the Standoff Bracket applies variable clutching resistance to allow adjustment of the side-to-side pan position of the Arm.
• To permanently lock the side-to-side pan position of the Arm; slightly loosen the 10-32 Phillips head screw on the top of the Standoff bracket, move the arm to the new desired permanent position; tighten the screw into one of the holes in the end of the arm to secure the new position.
• Note that the mounting plate includes slots along the side so that it can be attached to poles up to 36” in diameter with our optional strapping kit PN 80801 or any other compatible hose clamps.
• The mounting plate includes multiple slots for cable tie points.
