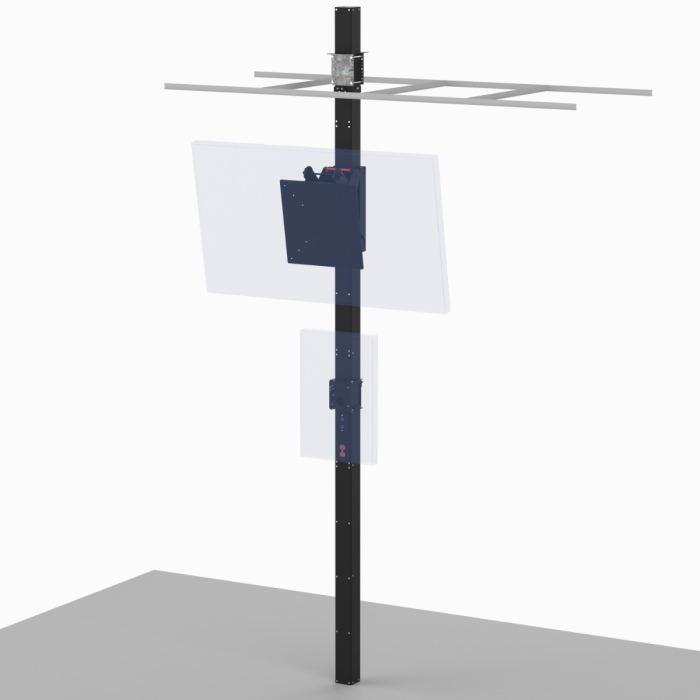

Digital Signage Kiosk Pole Stand 144” H +100mm VESA Screen flat Mount +100-400mm VESA Large Screen Display Tilting Mount
$2,630.00
In stock
Product Code
81474
Product Code | 81474 |
---|---|
Availability | In Stock |
Delivery Time | 1-7 Days |
Note | Product usually ships within 24 hours of payment/order. |
- For complete specifications of this assembly; download the PDF Product Information Sheet; click the "Product Attachments" tab in the middle of this page.
- This assembly is part of one of the “4X4 Pole System” product groups which consist of modular, industrial grade, multi- arm countertop, floor stand, freestanding pole and cabinet based systems designed to support multiple screens and peripheral devices.
- All individual components are modular and interchangeable which delivers maximum versatility and adaptability.
- Systems are available as complete, preconfigured, turnkey kits or can be custom configured to your specifications.
- A wide variety of accessories are available; such as stainless steel work tables and shelves, bag holders, integrated power and data outlets, several types of individual “clamp on” mounts that support screens, printers, peripherals and more.
General Features
- A vertical 4”W X 4”D X 144”H Channel Extension section attaches directly to a countertop or floor with the open side closed off with blank Cover Plates.
- A 4X4 Clamp on Flat 100mm VESA Mount clamps securely at any point along a vertical 4”W X 4”D pole assembly with the mounting base oriented parallel to any of the four sides of a pole without tools and allows any 100mm VESA compatible screen to be attached flush to the mounting plate which is 1” inch out from the surface of the vertical 4x4 pole assembly.
- A 96”H and 48” H Channel Extension sections are joined with an internal Channel Extension Coupler to create the 144”H assembly.
- The 100-400mm VESA Tilting Clamp on mount attaches directly to any 4x4 vertical pole or Wireway assembly without tools and will support screens up to 65” size class that can be tilted forward up to 20 degrees in either portrait or landscape orientation. This mount can be configured to support two screens in back to back orientation on a pole assembly.
- Includes a 24” L Channel Extension Section Cover Plate with Power and Data outlets.
- The Channel Extension Pass Through Mounting Base Bracket attaches to the bottom of the Channel Extension assembly directly to the floor, a countertop or any other solid, horizontal surface.
- The Channel Extension Ceiling Trim Ring Kit creates an attractive square finished frame around the location where the Extension penetrates the ceiling.
- The Above Ceiling Mounting Plates Kit PN 22004 includes two heavy duty galvanized steel clamping plates that attach to the Channel Extension Section at any point along its length by tightening two pairs of bolts, additional materials are then used to bracing that attaches the plates to the structure above the ceiling.
We believe in ethical SEO relevancy; the following section was included to assist the all-knowing algorithms in locating this page; however, some humans like it too.
Digital Signage Kiosk Pole Stands
- Information directory stand, Information directory Kiosk, Information Kiosk Floor Stand.
- Digital signage wall mount, Digital signage ceiling mount.
- Information touchscreen stand, Self-service touchscreen stand, digital media player stand.
- Freestanding touch screen stand. Digital signage floor stand, Universal Kiosk Floor Stand.
- Touchscreen Kiosk, Interactive Kiosk, Digital Kiosk, Interactive Information Kiosk.
- Touch screen stand, Promotional Interactive Kiosk, Digital Signage floor stand.
- Freestanding Kiosk, Digital Signage Pole stand.
PN 81474 Digital Signage Kiosk Pole Stand 144” H with a flat Mount that supports a 100mm VESA Screen and a Tilting Mount that supports a 100-400mm VESA Large Screen Display |
PN | QTY | DESCRIPTION |
21260 | 1 | Direct Mount Channel Extension Base Mounting Bracket Kit |
81576 | 1 | 4X4 Clamp on Mount + 100mm VESA Flat |
81561 | 1 | 4X4 Clamp On Mount 100-400mm VESA Tilting Mount, for a screen up to 70” class |
21269 | 1 | Channel, 96”, Extension Assembly |
51066 | 1 | Channel Extension, 48" |
21295 | 2 | Cover Plate, 24” Long, Blank, Channel Extension, Kit |
21296 | 2 | Cover Plate, 24”, Channel Extension, 2 Power and Data Outlets on one end, Kit |
21293 | 1 | Cover Plate, 48” Long, Blank, Channel Extension, Kit |
21271 | 1 | Pedestal Channel and Extension Section Coupler Kit |
22004 | 1 | Above Ceiling Mounting Plates Kit |
21262 | 1 | Trim Ring, Ceiling, Black, PED3, Kit |
21285 | 1 | Cable Management, Channel Extension Section, Kit |
