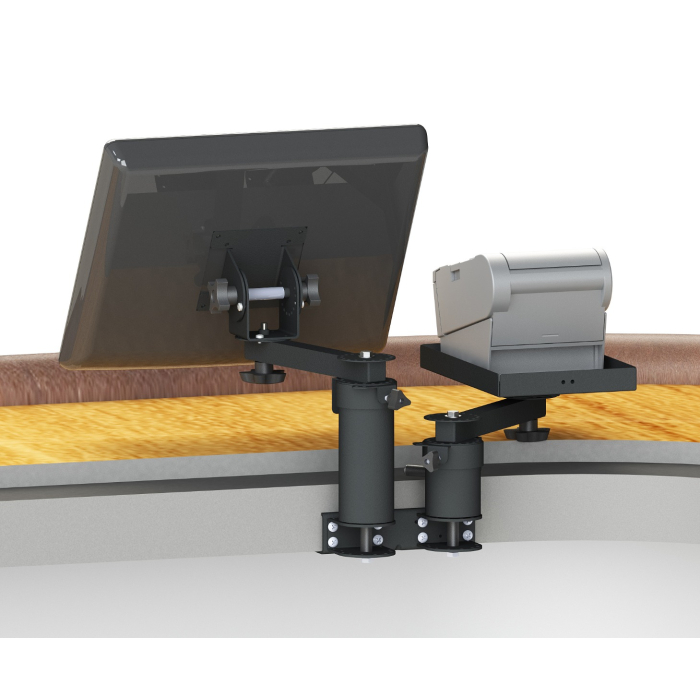

TOAST Compatible Under Counter Mount for Terminal and Printer + 3” and 6” Risers, Adjustable Arms + Pan-Tilt Head + Printer Tray

General Features

• All of these Under Counter mounts can be used as a universal support system for VESA compatible monitors, touchscreens and terminals and printers for Point of Sale / POS, Kitchen Display Systems / KDS in commercial kitchens, retail, restaurants, offices, industry, shops, medical, maritime, schools, laboratory and many other applications.

• An innovative set of joint assemblies allow two to four axis of position adjustment when attached to a Countertop or other horizontal surface.

• Beyond having flexible articulation; this mount has the key feature of being easily LOCKED in any desired screen position; this ability is VERY important when using touch screen equipment as it PREVENTS the screen from moving away from the user each time a touch is input.

• This assembly supports up to 15 lbs., is made of steel and finished with a durable, black, semi-gloss, powder coat that resists fingerprints.

• This mounting package includes the following individual components PN 50165, PN 50046, PN 67048, PN 67015, PN 67016,PN 67017, PN 67080, PN 67090.

• Visit kitchendisplaysystems.com for a free, easy to understand tutorial that covers all aspects of Kitchen Display Systems knowledge!

Standard VESA 75-100mm Pan and Tilt Head on an Adjustable Arm

• A universal mount that works with any 75mm or 100mm VESA compatible screen.

• Tightening the 2 four-point knobs applies variable clutching resistance to allow adjustment of the up and down tilt position of the screen. Tighten either of the two 10-32 Phillips head screws adjacent to the four-point knobs to permanently secure the tilt position.

• Tightening the five- point knob below the end of the Arm applies variable clutching resistance to allow adjustment of the side-to-side pan position of the screen.

• Tighten the 10-32 Phillips head screw on the lower Panning plate into one of the holes in the end of the arm to permanently secure the pan position.

• Includes 4 pieces of M4 Phillips head screws to attach the VESA mounting plate to the back of the screen.

Riser, Riser Cap and Arm

• The Riser Cap allows an arm to rotate around the top of a Riser assembly.

• Loosening the three - point knob on the side of the Riser Cap allows adjustment of the side-to-side pan position of the arm around the riser assembly. Tightening the knob locks the position of the arm.

• The Riser cap incorporates a cable tie point to secure the cables so that they will travel safely as the arm is rotated.

• The Riser Cap interacts with the Riser Cap Stop on the side of the Riser to prevent the arm from making a full rotation around the riser. Refer to the Riser and mounting plate section for instructions on setting the position of the Riser Cap Stop.

Flat Printer Tray on an Adjustable Arm

• A universal mount that works with most POS printers.

• The interior dimensions of the Flat Printer Tray are 6½” W X 10¼” L X 1” D.

• Includes a 1¼” diameter hole on one end for routing the power and data cables below the tray if desired.

• Includes multiple sets of tie point holes for inserting cable ties to secure the power and data cables if desired.

• Tightening the five- point knob below the end of the Arm applies variable resistance to allow adjustment of the side-to-side pan position of the Tray. A 10-32 Phillips head screw in one of the center holes can be tightened into one of the holes on the end of the arm to permanently secure the side-to-side pan position.

Under counter Mounting Plate with 2 Standoff Brackets, 2 Risers, 2 Riser Caps and 2 Arms

• The Riser sections elevate the arms above the mounting surface and permits the screen pan and tilt head, or printer tray, to travel horizontally allowing a wide range of positioning options.

• Attach the mounting plate to the underside of the counter top or other flat horizontal surface with appropriate fasteners.

• Evaluate the side-to-side range of motion of the arms that are attached to the Riser Caps.

• The Riser Cap Stop prevents the Riser cap and arm from rotating a full 360 degrees around the Riser. It may be advantageous to relocate the stop position to optimize the side-to-side range of motion of the arms for your application.

• To reset the position of the Riser Cap Stops; slightly loosen the 5/16-18 bolts with a ½” wrench, loosen the 10-32 Phillips head riser lock screws on the underside of each of the Stand Off Brackets; carefully rotate the risers to locate each of the stops at the new desired positions; then retighten the bolts and screws.

• The Riser Caps incorporate cable tie points to secure the cables so that they will travel safely as the arms are rotated.
