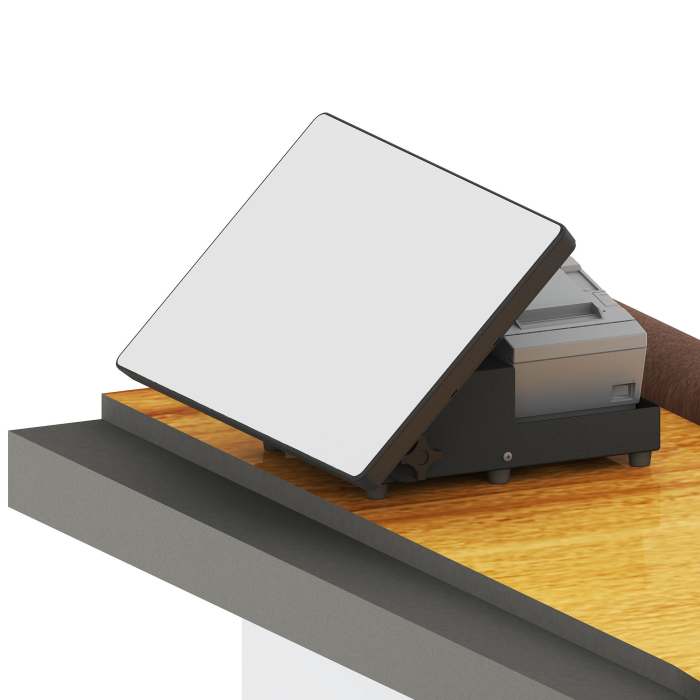

VESA Screen and Printer Countertop Stand

• Supports a 75/100mm VESA compatible tablet or terminal ranging in size from 10" to 22" and a standard printer.
• A large concealed, internal storage compartment for power supplies and cabling.
• Overall Dimensions: 12.10" high X 9.75" wide X 12.50" deep.
• Six non- slip rubber feet raise the stand 5/8" above the counter.
• Includes a low profile, three outlet, six foot long, grounded extention cord.
• Includes (4) M4 VESA screen mounting screws.
• Made of steel and finished with a durable, black, low gloss, micro wrinkle, powder coat that resists fingerprints.
• This mounting package includes the following individual product components PN 67018, PN 50756, PN 50757.

Screen Mounting Plate Features

• The screen mounting plate has multiple arrays of 75mm and 100mm VESA mounting patterns that allow a range of different screen attachments heights.
• The tilt angle of the screen adjusts from 90 to 40 degrees with variable resistance and locks into any desired postion with easy to use hand knobs.
• The screen mounting plate has multiple large cable path slots located in the center of the plate that provide multiple options for concealed cable routing from the screen into the storage compartment.

Storage Compartment Features

• The fully enclosed storage compartment is concealed behind the screen and is large enough for two standard size power supplies, all associated cabling, and the end of the included three outlet extention cord.
• The storage compartment features a large hinged door with two large cable path slots and a push button latch.
• The top storage compartment has a large cable path slot across the center section that allows concealed cable routing to the VESA screen mounting plate.
• The bottom of the storage compartment has three 1-1/4" round cable path holes that allow the power and data cables to be routed into the compartment from underneath the mount.
• The cable path slots in the bottom, top and door of the storage compartment work together to provide passive ventilation and drainage of any moisture.

Printer Tray Section Features

• The internal dimensions of the printer tray section are  6.19" long X 9.63" wide with a 1-3/4" tall retaining edge around the entire tray section.
  The bottom of the printer tray section includes two 1-1/4" round cable path holes that allow the power and data cables to be routed into the tray from underneath the mount.

Bottom Plate Features

• The bottom plate includes five 1-1/4" round cable path holes that allow the power and data cables to be routed into the compartment from underneath the mount.
• The bottom plate is supported by six 5/8" tall, non-slip rubber feet which keep the entire mount above wet surfaces. The feet are attatched with screws and nylon lock nuts.
