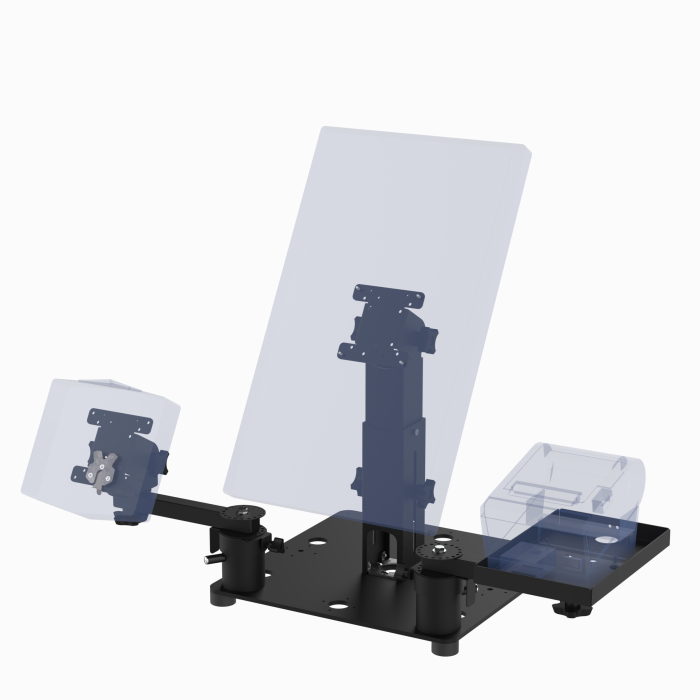

16X16 Countertop Self Check Out Stand for Any Point of Sale (POS) Terminal + Any VESA Display (supports 50, 75, 100mm VESA, up to 32” Class, Pan-Tilt) + Ingenico Payment Reader (Lane, Desk, Axium)
Countertop Self Checkout Stand for Any VESA Point of Sale (POS) Terminal or VESA Display (Tilt-Only) + Printer Tray + Ingenico Terminal Mount
PN
QTY
Description
21130
1
16X16 Base Plate Assembly
21131
1
Telescoping Pedestal Mounting Base Kit
21132
1
Telescoping Pedestal Assembly
21133
2
3” Riser + Adjustable Arm Assembly
21135
1
Printer and Peripheral Tray Assembly + Arm Mounting Kit
21136
1
Ingenico Pan-Tilt Head Assembly + Arm Mounting Kit
21137
1
Standard VESA Tilt Plate Assembly for Telescoping Pedestal
21139
1
Cable Management Kit
Note:
Tilt-Only Configuration
Supports 50, 75, 100mm VESA screens up to 32” Class.
An Overview of the 16X16 Modular Countertop Stand System
The assemblies described in this document are part of the 16X16 system of modular countertop stands.
This system can be extensively customized to work with Point of Sale (POS), Self Check Out (SCO), Digital Signage and other applications.
Know that we have pre-configured only a few examples of many possible configurations made possible by our wide array of modular and interchangeable components.
The heart of this system is a thick, heavy, 16” x 16” square steel “Base Plate” assembly that is supported above a countertop with four, large, non-slip rubber feet. These feet create a ¾” tall concealed pathway for routing cabling below the plate.
The Base plate also features seven locations for the attachment of multiple Telescopic Pedestal assemblies for VESA screens and “Riser” assemblies that include adjustable arms to support Touch Terminals, Printers, Customer Displays, EMV Card Readers, Barcode Scanners, Scales and other peripheral equipment. Each attachment location features an adjacent cable path hole.
POS Terminals with integral bases, POS Printers or other equipment can be placed directly on top of the base plate. Depending on the layout of installed equipment, the base plate can also be placed directly on top of a standard (16” x 16”) or (18” x 16”) cash drawer.
Know that all individual components are modular and interchangeable which delivers maximum versatility and adaptability, and provides easy reconfiguration to support new peripheral equipment. Systems are available as complete, preconfigured, turnkey kits or can be custom configured to your specifications. Contact our Applications team if you need a quantity of custom assemblies.
These assemblies are made of steel and finished with a durable, black, micro-wrinkle finish powder coat that resists fingerprints.
Note: For images, descriptions and links to webpages for all pre-configured 16X16 Modular Countertop Stands; review the last pages of this document. For complete specifications on any product; click on the "Product Attachments" tab to download the PDF Product Information Sheet from all individual product pages.
These systems are compatible with Ingenico Lane (3000, 5000 v2, 7000, 8000), Ingenico Desk (1500) and Ingenico Axium (RX5000) and future readers equipped with the Ingenico “Clip-In” / “Click-In” mounting standard; we also have solutions for other types of EMV readers.
What makes these systems different?
No engineering degree required to understand how the individual components fit together.
The modular design allows total system flexibility for simplified customization.
There are NO molded plastic structural parts to break or wear out, no springs or pneumatic cylinders to fail and NO special tools required for installation.
The side-to-side pan position and up-down tilt position of screens, and the vertical height of Pedestals can be adjusted easily without tools to support VESA compatible Point of Sale (POS) or Self Check Out (SCO) terminals.
The position of arms can be adjusted easily without tools to support EMV readers, POS printers and other peripherals.
We also have larger countertop systems with many more features, mobile and stationary cabinet systems and stand alone “Pole Systems” for POS and SCO applications as well as stainless steel vertical and horizontal 4X4 wireways.
Need something special?
Our in-house design team offers fast turnaround on custom parts. If you wish to order a quantity of custom products, we will create a new assembly specifically pre-configured for your application.
