4X4 Clamp on Mount + 100mm VESA Tilting

• For complete specifications of this assembly; download the PDF Product Information Sheet; click the "Product Attachments" tab in the middle of this page.

General Features

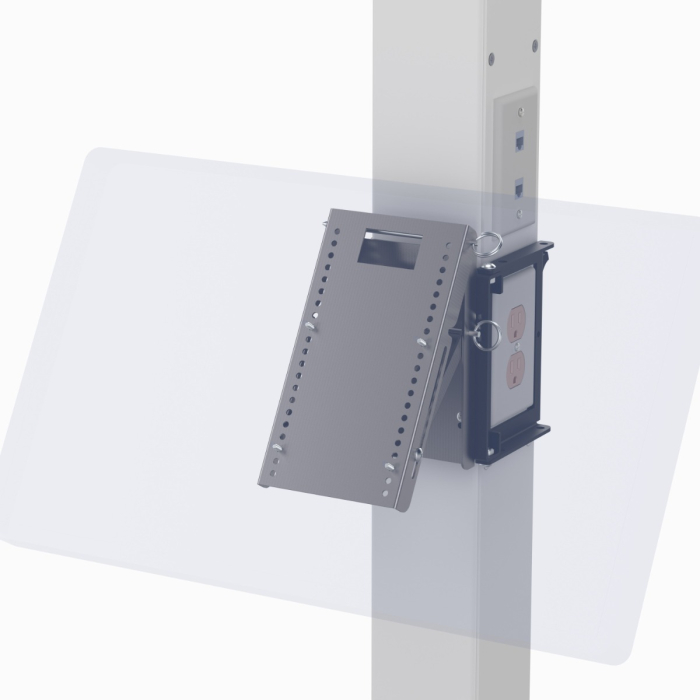

• This versatile mounting system clamps securely without tools at any point along a vertical 4” square pole with the mounting plate oriented parallel to any of the four sides of a pole.
• This assembly allows any 100mm VESA compatible screen to be attached semi flush to the mounting plate which is 2” inches out from the surface of the vertical 4x4 pole assembly when equipped with the Tilting mount. The mount Includes 4 EA M4 X 10mm L Phillips head screws to attach the screen to the VESA Tilting mount.
• The Tilting mount is made in two halves that are secured together with long push pins; once one half is attached to the back of the screen; and then aligned correctly with the other half that is attached to the mounting plate; the two pins can be inserted through holes in both plates to secure then together.
• The VESA Tilting mount can be attached to the mounting plate to allow either the top or bottom of the screen to be raised outward from the mounting surface up to 90 degrees.
• Once the desire orientation and tilt angle are determined; two Phillips head screws on the sides VESA Tilting mount can be tightened to secure the tilt angle permanently.
• The side brackets of the pole clamping system are hinged at the mounting plate and close around the 4x4 pole; two four point hand knobs are inserted through the rear flanges and tightened to provide the clamping action. The knobs can be replaced with 5/16” X 1” L hex or security head bolts if desired.
• Self- tapping screws can also be installed into the pole through holes in either of the hinging side brackets to secure the mount permanently.
• Cut out sections on each of the clamping sides allow the mount to be installed over a standard single gang outlet.
